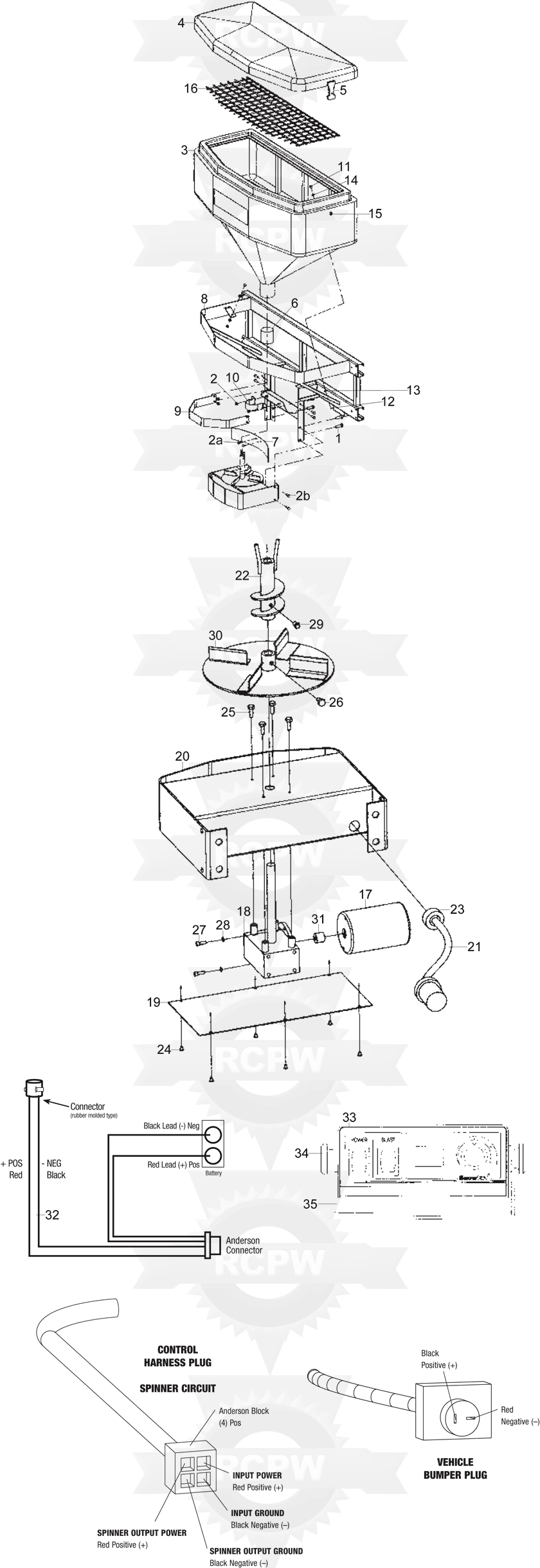

SnowEx 1075 Tailgate Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx 1075 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description	Online Price
1		Discontinued
2	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
2a	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
2b	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
3	75643	SP-1075X Hopper Kit	$828.76	View on RCPW
4	75645	SP-1075X Lid Kit	$285.94	View on RCPW
5	D6105	Flexible Draw Latch	$24.93	View on RCPW
6	D6108	409SS 2.75" Stainless Throat Liner	$29.11	View on RCPW
7	D6110	3" x 20" Plastic Deflector	$16.13	View on RCPW
8	75644	SP-1075X Frame Kit	$714.90	View on RCPW
9	D6128	Spinner Guard Tailgate	$32.76	View on RCPW
10	D6129	Throat Clamp	$29.13	View on RCPW
11	D6137-1	5/16"-18 x 1-1/4" Screw	$5.44	View on RCPW
12	D6155-1	5/16" Zinc Lock Washer	$1.45	View on RCPW
13		Discontinued
14		Discontinued
15	D6198	Latch Keeper	$9.67	View on RCPW
16	75642	SP-1075X 42" x 15" Top Screen	$229.03	View on RCPW
17	75626	Motor Kit	$338.23	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	$243.95	View on RCPW
18	75640	Transmission Kit	$367.27	View on RCPW
	133001-081	Cogwell Gearbox Spinner Transmission	$266.97	View on RCPW
19	75641	Transmission Enclosure Cover Kit	$35.89	View on RCPW
20	75635	Transmission Enclosure Kit	$170.70	View on RCPW
21	D6115	44-3/4" Power Cable	$78.69	View on RCPW
22	75615	Auger Kit	$64.30	View on RCPW
23	F51949	Liquid Tight Cord Grip	$10.50	View on RCPW
24	D6467-1	1/4" x 3/4" x 1/2" Retainer	$2.34	View on RCPW
25	51030	1/4"-20 x 1/2" Stainless Steel Serrated Hex Bolt	$8.66	View on RCPW
26	51032	5/16"-18 x 1/2" Grade 5 Hex Head Cap Screw	$1.46	View on RCPW
27	51039	#10-32 x 5/8" Serrated Bolt	$7.21	View on RCPW
28	D6136-1	#10 Zinc Lock Washer	$1.45	View on RCPW
29	D6140-1	5/16"-18 x 3/8" Set Screw	$3.44	View on RCPW
30	D6224	10" Steel Spinner	$106.84	View on RCPW
31	D6232	Motor Drive Coupler	$18.54	View on RCPW
	100005	Replacement Motor/Transmission Coupler for SnowEx Spreaders	$12.73	View on RCPW
32	D6114	24' Tailgate Vehicle Wiring Harness	$191.54	View on RCPW
33	D6230	Variable Speed Controller	$478.94	View on RCPW
34	D6124	Bracket Knob	$15.24	View on RCPW
35	D6123	Controller Mounting Bracket	$51.33	View on RCPW
