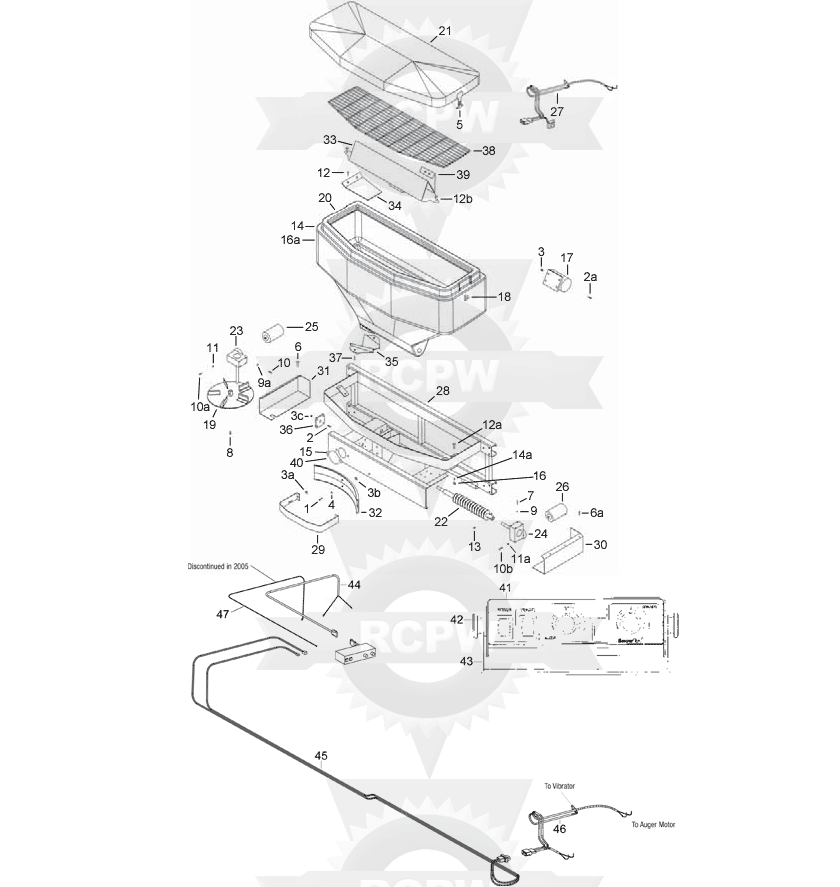

SnowEx 1875 Tailgate Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx 1875 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description	Online Price
1	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
2	D4122-1	3/8"-16 x 1-1/2" Bolt	$3.84	View on RCPW
2a	D4122-1	3/8"-16 x 1-1/2" Bolt	$3.84	View on RCPW
3	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
3a	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
3b	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
3c	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
4	D4125-1	3/8" Flat USS Zinc Washer	$1.49	View on RCPW
5	D6105	Flexible Draw Latch	$24.93	View on RCPW
6	D6130-1	3/16" x 1/4" Black Rivet	$1.96	View on RCPW
6a	D6130-1	3/16" x 1/4" Black Rivet	$1.96	View on RCPW
7	51031	1/4"-20 x 3/4" Serrated Bolt	$8.66	View on RCPW
8	51032	5/16"-18 x 1/2" Grade 5 Hex Head Cap Screw	$1.46	View on RCPW
9		Discontinued
9a		Discontinued
10	51039	#10-32 x 5/8" Serrated Bolt	$7.21	View on RCPW
10a	51039	#10-32 x 5/8" Serrated Bolt	$7.21	View on RCPW
10b	51039	#10-32 x 5/8" Serrated Bolt	$7.21	View on RCPW
11	D6136-1	#10 Zinc Lock Washer	$1.45	View on RCPW
11a	D6136-1	#10 Zinc Lock Washer	$1.45	View on RCPW
12	D6137-1	5/16"-18 x 1-1/4" Screw	$5.44	View on RCPW
12a	D6137-1	5/16"-18 x 1-1/4" Screw	$5.44	View on RCPW
12b	D6137-1	5/16"-18 x 1-1/4" Screw	$5.44	View on RCPW
13	D6140-1	5/16"-18 x 3/8" Set Screw	$3.44	View on RCPW
14	D6155-1	5/16" Zinc Lock Washer	$1.45	View on RCPW
14a	D6155-1	5/16" Zinc Lock Washer	$1.45	View on RCPW
15	D6356	Bearing Access Cover	$16.96	View on RCPW
16		Discontinued
16a		Discontinued
17		Discontinued
	Z-80	80 lb. "Sure-Flow" Salt Spreader Vibrator (No Wiring)	$171.03	View on RCPW
18	D6198	Latch Keeper	$9.67	View on RCPW
19	75685	Spinner Kit	$143.24	View on RCPW
20	75678	SP-1875 Hopper Kit	$900.94	View on RCPW
21	75677	Lid Kit	$331.87	View on RCPW
22	75679	Auger Kit	$176.87	View on RCPW
23	75686	8:1 Worm Gear Spinning Transmission Kit	$287.27	View on RCPW
24	75692	Auger Transmission Kit	$562.87	View on RCPW
25	75626	Motor Kit	$338.23	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	$243.95	View on RCPW
26	75675	Motor Kit	$330.63	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	$243.95	View on RCPW
27	75676	Spreader Harness Kit	$129.07	View on RCPW
28	75684	SP-1875 Frame Kit	$800.97	View on RCPW
29	75688	Trim Ring Kit	$73.07	View on RCPW
30	75598	SP-1875 Auger Drive Cover	$62.43	View on RCPW
31		Discontinued
32	75665	Deflector Kit	$62.81	View on RCPW
33	75681	Baffle Kit	$92.07	View on RCPW
34	75681	Baffle Kit	$92.07	View on RCPW
35	D6331	1875 Material Chute	$59.64	View on RCPW
36	75660	5/8" 4-Bolt Flange Bearing Kit	$65.74	View on RCPW
37	D6333-1	3/16" x .354 Black Rivet	$2.77	View on RCPW
38	75680	1875 Top Screen Kit	$238.37	View on RCPW
39	75658	Vibrator Motor Mount	$55.53	View on RCPW
40	D6877-1	#8 x 3/4" Driller Screw	$3.84	View on RCPW
41	D6527	Vee Pro SP-8000 Controller	$745.56	View on RCPW
42	D6124	Bracket Knob	$15.24	View on RCPW
43	D6329	1875 Controller Mounting Bracket	$54.11	View on RCPW
44	D6341	156" Pro Control Power Cable	$135.84	View on RCPW
45	D6322	311" Vehicle Harness	$399.79	View on RCPW
46	75676	Spreader Harness Kit	$129.07	View on RCPW
47	D7127	60" Ignition Wire	$23.57	View on RCPW
