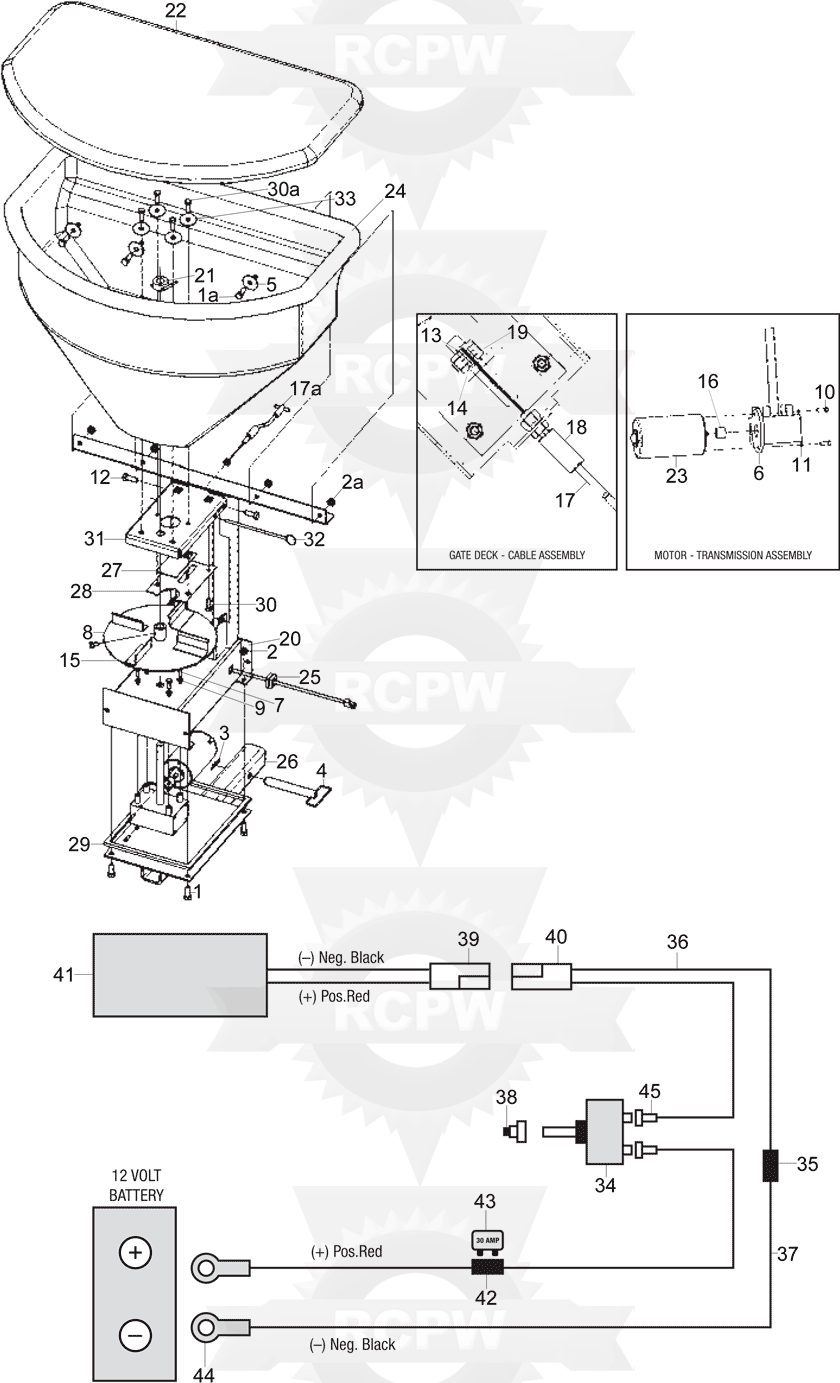

SnowEx 375 Tailgate Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx 375 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description	Online Price
1	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
1a	D4121-1	3/8"-16 x 1" Hex Head Bolt	$2.96	View on RCPW
2	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
2a	D4124-1	3/8"-16 Nylox Zinc Nut	$1.79	View on RCPW
3	D4135	.093" x 2-3/8" Hairpin Cotter	$2.26	View on RCPW
4	75620	Hitch Pin Kit	$25.66	View on RCPW
5	D4318-1	3/8" x 1-1/2" Washer	$3.24	View on RCPW
6	75640	Transmission Kit	$367.27	View on RCPW
	133001-081	Cogwell Gearbox Spinner Transmission	$266.97	View on RCPW
7	51030	1/4"-20 x 1/2" Stainless Steel Serrated Hex Bolt	$8.66	View on RCPW
8	51032	5/16"-18 x 1/2" Grade 5 Hex Head Cap Screw	$1.46	View on RCPW
9		Discontinued
10	51039	#10-32 x 5/8" Serrated Bolt	$7.21	View on RCPW
11	D6136-1	#10 Zinc Lock Washer	$1.45	View on RCPW
12	D6452-1	3/8"-16 x 1" Serrated Bolt	$4.27	View on RCPW
13	D6155-1	5/16" Zinc Lock Washer	$1.45	View on RCPW
14		Discontinued
15	D6224	10" Steel Spinner	$106.84	View on RCPW
16	D6232	Motor Drive Coupler	$18.54	View on RCPW
	100005	Replacement Motor/Transmission Coupler for SnowEx Spreaders	$12.73	View on RCPW
17	D6304	10' T-Handle Cable	$92.97	View on RCPW
17a	D6304	10' T-Handle Cable	$92.97	View on RCPW
18	D6305	Bulkhead Cable Fitting	$24.93	View on RCPW
19	D6308-1	5/16"-18 x 3/4" Hex Head Bolt	$7.03	View on RCPW
20	D6400	375 Main Frame	$274.73	View on RCPW
21	75408	Agitator Kit	$39.49	View on RCPW
22	D7136	OEM Weather Cover	$113.80	View on RCPW
23	75418	SP-125 Motor Kit	$155.33	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	$243.95	View on RCPW
24	D6464	3.75 Cubic Foot Yellow Hopper	$452.53	View on RCPW
25	D6413	375 Cord Restraint	$10.90	View on RCPW
26		Discontinued
27		Discontinued
28	D6416	SP-375 Gate Track	$49.93	View on RCPW
29		Discontinued
30		Discontinued
30a		Discontinued
31	D6419	SP-375 Gate Deck	$69.36	View on RCPW
32	D6457	Gate Slide Pin with Cotter	$24.93	View on RCPW
33		Discontinued
34	D6184	SPST Switch	$49.93	View on RCPW
35	D6234-1	12-Gauge Butt Connector	$4.33	View on RCPW
36	D6403	240" Wiring Harness	$101.30	View on RCPW
37	D6404	120" Battery Harness	$62.41	View on RCPW
38	11236	Rubber Switch Boot	$15.57	View on RCPW
39	D6407	12" Splice Cord	$45.76	View on RCPW
40	D6408	Splice Cord	$45.76	View on RCPW
41	75418	SP-125 Motor Kit	$155.33	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	$243.95	View on RCPW
42	D6424	30 Amp ATC Blade Fuse	$24.93	View on RCPW
43	D6425	Mini Fuse Holder	$24.93	View on RCPW
44	D7105-1	Ring Terminal	$17.61	View on RCPW
45	D7106-1	Male Spade Connector	$2.07	View on RCPW
