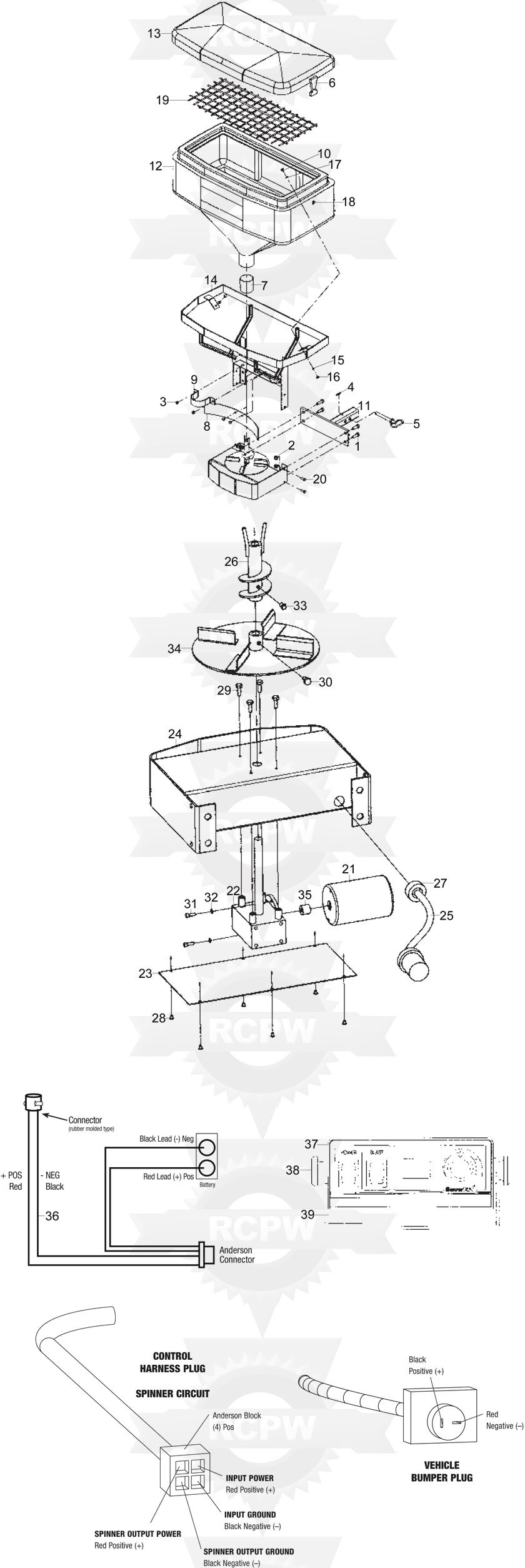

SnowEx 575 Tailgate Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx 575 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description
1	D4116-1	1/2"-13 x 1-1/2" Bolt	View on RCPW
2	D4120-1	1/2"-13 Nylox Zinc Nut	View on RCPW
3	D4124-1	3/8"-16 Nylox Zinc Nut	View on RCPW
4	D4135	.093" x 2-3/8" Hairpin Cotter	View on RCPW
5	75620	Hitch Pin Kit	View on RCPW
6	D6105	Flexible Draw Latch	View on RCPW
7	D6108	409SS 2.75" Stainless Throat Liner	View on RCPW
8	D6110	3" x 20" Plastic Deflector	View on RCPW
9	D6129	Throat Clamp	View on RCPW
10	D6137-1	5/16"-18 x 1-1/4" Screw	View on RCPW
11	75633	Receiver Kit	View on RCPW
12	75631	SP-575X Hopper Kit	View on RCPW
13	75630	SP-575X Lid Kit	View on RCPW
14	75632	SP-575X Frame Kit	View on RCPW
15	D6155-1	5/16" Zinc Lock Washer	View on RCPW
16		Discontinued
17		Discontinued
18	D6198	Latch Keeper	View on RCPW
19	75655	Top Screen Kit	View on RCPW
20	D6452-1	3/8"-16 x 1" Serrated Bolt	View on RCPW
21	75626	Motor Kit	View on RCPW
	307067-360	Zenith Replacement Spreader Motor for SnowEx Spreaders	View on RCPW
22	75640	Transmission Kit	View on RCPW
	133001-081	Cogwell Gearbox Spinner Transmission	View on RCPW
23	75641	Transmission Enclosure Cover Kit	View on RCPW
24	75635	Transmission Enclosure Kit	View on RCPW
25	D6162	26-1/2" Cable	View on RCPW
26	75615	Auger Kit	View on RCPW
27	F51949	Liquid Tight Cord Grip	View on RCPW
28	D6467-1	1/4" x 3/4" x 1/2" Retainer	View on RCPW
29	51030	1/4"-20 x 1/2" Stainless Steel Serrated Hex Bolt	View on RCPW
30	51032	5/16"-18 x 1/2" Grade 5 Hex Head Cap Screw	View on RCPW
31	51039	#10-32 x 5/8" Serrated Bolt	View on RCPW
32	D6136-1	#10 Zinc Lock Washer	View on RCPW
33	D6140-1	5/16"-18 x 3/8" Set Screw	View on RCPW
34	D6224	10" Steel Spinner	View on RCPW
35	D6232	Motor Drive Coupler	View on RCPW
	100005	Replacement Motor/Transmission Coupler for SnowEx Spreaders	View on RCPW
36	D6114	24' Tailgate Vehicle Wiring Harness	View on RCPW
37	D6230	Variable Speed Controller	View on RCPW
38	D6124	Bracket Knob	View on RCPW
39	D6123	Controller Mounting Bracket	View on RCPW
