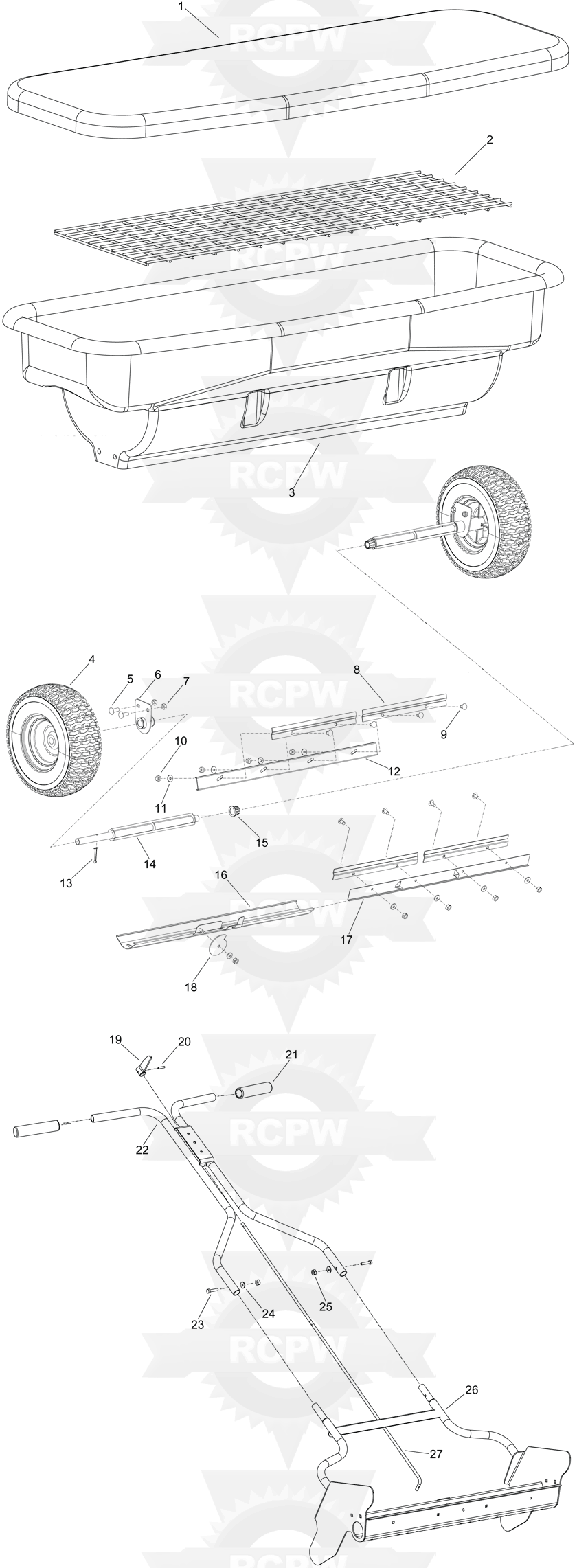

SnowEx SD-95 Walk Behind Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx SD-85 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description
1	D5020	Drop Spreader Hopper Cover	View on RCPW
2	D5008	29-1/2" x 10" Top Screen	View on RCPW
3	D5000	1.5 Cubic Foot Yellow Hopper	View on RCPW
4	50907	13" x 5" Push Spreader Wheel	View on RCPW
5	D5022-1	5/16"-18 x 3/4" Carriage Bolt	View on RCPW
6	D5003	SD-95 Drop Spreader Bearing Bracket	View on RCPW
7	D5023-1	5/16"-18 KEPS Stainless Nut	View on RCPW
8	D5014	Clamp Cleat	View on RCPW
9	D5021	1/4-20 x 3/4" Stainless Steel Carriage Bolt	View on RCPW
10	D5942-1	1/4"-20 Hex Stainless Nut	View on RCPW
11		Discontinued
12	D5009	SD-95 Gate Tension Adjustment Bracket	View on RCPW
13	50933	3/16" x 2" Stainless Steel Cotter Pin (2 pack)	View on RCPW
14	D5001	SD-95 Agitator Axle	View on RCPW
15	50935	Nylon Wheel Bushing	View on RCPW
16	D5005	Drop Spreader Gate Slide	View on RCPW
17	D5010	Gate Mount Bracket	View on RCPW
18	D5006	Calibration Cam	View on RCPW
19	D5011	Gate Lever	View on RCPW
20	50934	3/16" x 1-1/4" Spring Pin	View on RCPW
21	50917	Handle Grip	View on RCPW
22	50912	Push Spreader Handle	View on RCPW
23	50911	Stainless Steel Hex Cap Screw 1/4-20 x 1-3/8 (5 pack)	View on RCPW
24		Discontinued
25	D5942-1	1/4"-20 Hex Stainless Nut	View on RCPW
26	D5002	SD-95 Drop Spreader Main Frame	View on RCPW
27	D5004	43" Actuator Rod	View on RCPW

SnowEx SD-95 Walk Behind Salt Spreader Diagram
