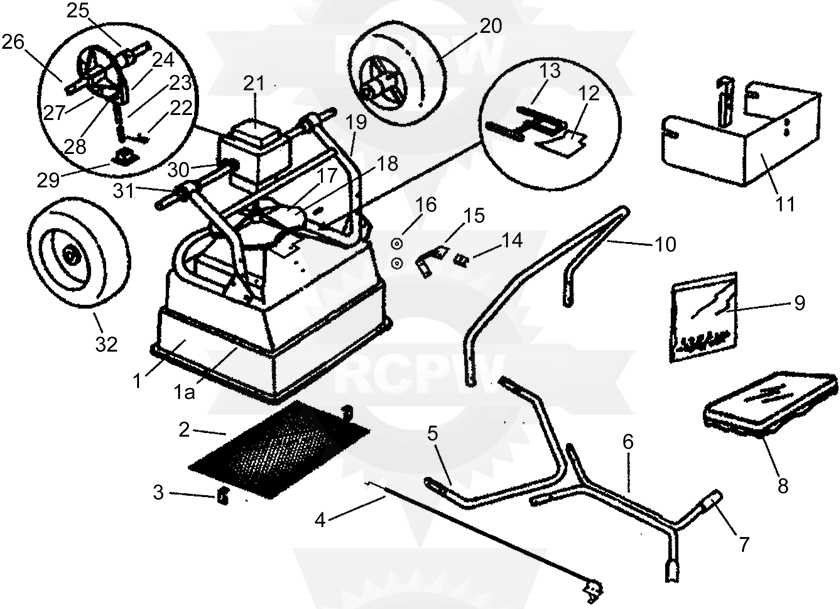

SnowEx SP-75 Walk Behind Salt Spreader Diagram

Instructions for SnowEx parts lookup: Hover over an index number of your choice to see pricing and availability. In some cases, an aftermarket SnowEx SP-75 part may be available.

Parts List Key
	Recommended Alternative Part Is Available

Diagram #	Part #	Description	Online Price
1		Discontinued
1a		Discontinued
2	D6014	13-1/2" x 17-1/4" Hopper Screen	$73.80	View on RCPW
3	D6015	Screen Clip	$15.87	View on RCPW
4		Discontinued
5	D6030	Lower Handle Brace	$138.97	View on RCPW
6		Discontinued
7	D6032	Handle Grips	$14.13	View on RCPW
8	D6041	2.0 Cubic Foot Hopper Cover	$35.59	View on RCPW
9		Discontinued
10	D6029	Leg with Tube Caps	$138.97	View on RCPW
11	D6039	SP-75 Sidewalk Deflector	$69.50	View on RCPW
12	D6048	Shut Off Plate	$49.19	View on RCPW
13	D6008	Shutoff Plate Guide	$69.13	View on RCPW
14	D6054	Cable Clamp	$27.74	View on RCPW
15	D6055	Cable Bracket	$34.64	View on RCPW
16	D6056	1/4" x 1" Zinc Fender Washer	$8.29	View on RCPW
17	D6018	Impeller with Roll Pin	$69.50	View on RCPW
18	D6017	Impeller Assembly	$205.57	View on RCPW
19	D6027	Frame Assembly with Bearings	$680.49	View on RCPW
20		Discontinued
21	D6025	Gear Cover Complete	$69.50	View on RCPW
22	D6016	Stir Wire	$26.01	View on RCPW
23	D6019	Impeller Shaft	$69.50	View on RCPW
24	D6021	Gear Support	$69.13	View on RCPW
25	0D6024	Push Rod Guide Plate	$1.55	View on RCPW
26	D6023	Axle	$88.30	View on RCPW
27	D6022	5-1/2" Diameter Bevel Gear	$78.17	View on RCPW
28	D6020	Pinion Gear with Roll Pin	$43.40	View on RCPW
29	D6009	Impeller Bearing Assembly	$36.14	View on RCPW
30	D6026	Gear Cover Clamps	$5.44	View on RCPW
31	D6028	Axle Bearings	$15.87	View on RCPW
32	D6035	Drive Wheel with Cotter	$169.21	View on RCPW
